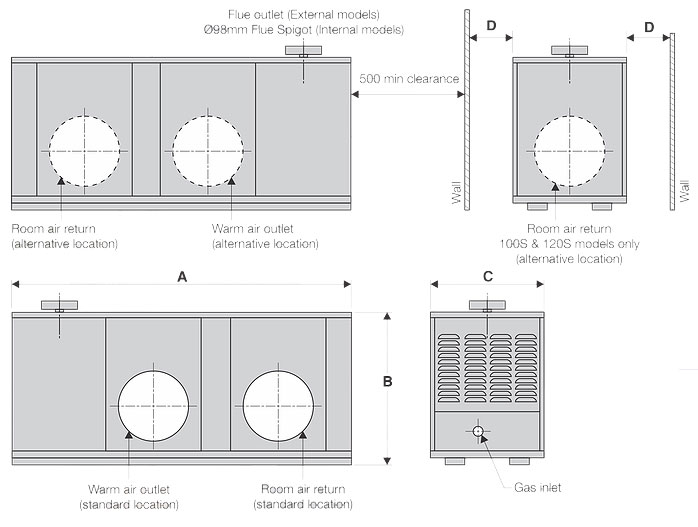

Omega 3 star gas ducted heating dimension drawing specifications

certification of Australian Gas Association

gas energy rating of Omega's 3 star gas ducted heating unit

Internal Models

IHE60S

IHE100S/ZMS100I

IHE120S/ZMS120I

External Models

EHE60S

EHE100S/ZMS100E

EHE120S/ZMS120E

Omega Internal Models

Model	IHE60S	IHE100S/*ZMS100I	IHE120S/*ZMS120I
Number of burners	3	5	7
Dim A	1210mm	1120mm	1275mm
Dim B	520mm	520mm	520mm
Dim C	315mm	350mm	565mm
Dim D (min. clearance to combustibles)	50mm	100mm	100mm
Weight	40kg	50kg	66kg
NG Nominal Gas Consumption – Max.	50 MJ/h	83 MJ/h	120 MJ/h
NG Nominal Gas *Consumption – Min. (ZMS)**	–	– / *52 MJ/h	– / *82 MJ/h
Nominal Burner Pressure	0.9kPa	0.9kPa	0.9kPa
STD Fan Air Flow Rate @ 75 Pa ESP	250W	315W	600W
Low Fan Speed	–	425 L/sec	830 L/sec
Med fan Speed	–	495 L/sec	975 L/sec
High Fan Speed	340 L/sec	570 L/sec	1100 L/sec
Duct Connection *Optional 400mm on 120 models*	300mm	300mm	350mm
XA Fan Air Flow Rate @ 125 Pa ESP	–	600W	750W
High Fan Speed	–	670 L/sec	1200 L/sec
Duct Connection on X.A units	–	350mm	400mm

* For Z.M.S Models

One thermostat calls for HEAT	Fan funs on LOW	Gas on LOW
Two thermostat call for HEAT	Fan funs on HIGH	Gas on HIGH
One thermostat calls for COOLING	Fan funs on HIGH
Two thermostat calls for COOLING	Fan funs on HIGH

Omega External Models

Model	EHE60S	EHE100S/*ZMS100E	EHE120S/*ZMS120E
Number of burners	3	5	7
Dim A	1210mm	1120mm	1275mm
Dim B	520mm	520mm	520mm
Dim C	315mm	350mm	565mm
Dim D (min. clearance to combustibles)	50mm	100mm	100mm
Weight	40kg	50kg	66kg
NG Nominal Gas Consumption – Max.	50 MJ/h	83 MJ/h	120 MJ/h
NG Nominal Gas *Consumption – Min. (ZMS)**	–	– / *52 MJ/h	– / *82 MJ/h
Nominal Burner Pressure	0.9kPa	0.9kPa	0.9kPa
STD Fan Air Flow Rate @ 75 Pa ESP	250W	315W	600W
Low Fan Speed	–	425 L/sec	830 L/sec
Med fan Speed	–	495 L/sec	975 L/sec
High Fan Speed	340 L/sec	570 L/sec	1100 L/sec
Duct Connection *Optional 400mm on 120 models*	300mm	300mm	350mm
XA Fan Air Flow Rate @ 125 Pa ESP	–	600W	750W
High Fan Speed	–	670 L/sec	1200 L/sec
Duct Connection on X.A units	–	350mm	400mm

* For Z.M.S Models

One thermostat calls for HEAT	Fan funs on LOW	Gas on LOW
Two thermostat call for HEAT	Fan funs on HIGH	Gas on HIGH
One thermostat calls for COOLING	Fan funs on HIGH
Two thermostat calls for COOLING	Fan funs on HIGH
