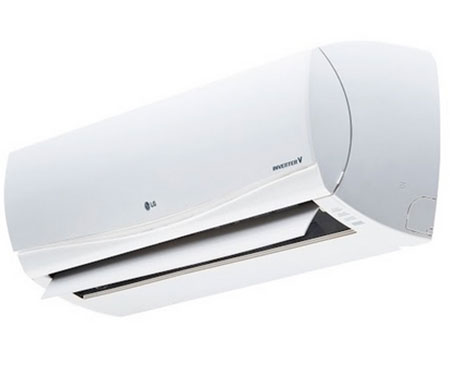

LG Premium Wall Split Systems

System Model Number

LG P09AWN-14/W09AWN-14

Indoor Unit Specifications – Model Number P09AWN-NM14 / W09AWN-NM14

Cooling Capacity (Min/Rated/Max) W	Heating Capacity (Min/Rated/Max) W	Power Input (Cooling/Heating) W	EER	COP	Star Rating – Cooling	Star Rating – Heating	Sound Pressure (Cooling) Sleep/Low/Medium/High (dBA)	Sound Pressure (Heating) Low/Medium/High (dBA)
890/2,500/3,700	890/3,200/5,000	518/653	4.83	4.90	5.0	5.0	19 / 23 / 33 / 38	23 / 33 / 38
Sound Power (Cooling) High (dBA)	Air Flow Rate (Cooling) Sleep/Low/ Medium/High/ Max(power) (m³/min)	Air Flow Rate (Heating) Low/ Medium/High (m³/min)	Dehumidification Rate (l/h)	Running Current (Cooling) Rated/Max (A)	Running Current (Heating) Rated/Max (A)	Starting Current (Cooling) Rated/ (A)	Starting Current (Heating) Rated/ (A)	Dimensions
57	65 / 142 / 192 / 217 / 240	158 / 208 / 275	1.2	2.6/5.6	3.1/7.1	2.6	3.1	885 x 296 x 236
Net Weight (kg)
11

Outdoor Unit Specifications – Model Number P09AWN-UM14

Operation Range (Cooling, Min – Max) / (Heating, Min – Max)	Sound Pressure (Cooling/Heating) (High) dBA	Sound Power (Cooling) (High) dBA	Airflow Rate (High) L/S	Compressor Type	Net Weight	Dimension	Refrigerant Base Charge (R410A)	Pipe Sizing (Gas/Liquid) mm	Maximum Circuit Breaker (A)
-10~48/-15~24	45/45	65	550	Twin Rotary	36	770 x 545 x 288	1,150	9.52/6.35	15

Indoor Unit Specifications – Model Number P12AWN-NM14 / W12AWN-NM14

Cooling Capacity (Min/Rated/Max) W	Heating Capacity (Min/Rated/Max) W	Power Input (Cooling/Heating) W	EER	COP	Star Rating – Cooling	Star Rating – Heating	Sound Pressure (Cooling) Sleep/Low/Medium/High (dBA)	Sound Pressure (Heating) Low/Medium/High (dBA)
890/3,500/4,040	890/4,000/6,000	862/872	4.06	4.59	3.5	4.5	19 / 23 / 33 / 39	23 / 33 / 39
Sound Power (Cooling) High (dBA)	Air Flow Rate (Cooling) Sleep/Low/ Medium/High/ Max(power) (m³/min)	Air Flow Rate (Heating) Low/ Medium/High (m³/min)	Dehumidification Rate (l/h)	Running Current (Cooling) Rated/Max (A)	Running Current (Heating) Rated/Max (A)	Starting Current (Cooling) Rated/ (A)	Starting Current (Heating) Rated/ (A)	Dimensions
57	65 / 142 / 192 / 217 / 240	158 / 208 / 275	1.3	3.8/5.6	3.9/7.1	3.8	3.9	885 x 296 x 236
Net Weight (kg)
11

Outdoor Unit Specifications – Model Number P12AWN-UM14

Operation Range (Cooling, Min – Max) / (Heating, Min – Max)	Sound Pressure (Cooling/Heating) (High) dBA	Sound Power (Cooling) (High) dBA	Airflow Rate (High) L/S	Compressor Type	Net Weight	Dimension	Refrigerant Base Charge (R410A)	Pipe Sizing (Gas/Liquid) mm	Maximum Circuit Breaker (A)
-10~48/-15~24	45/45	65	550	Twin Rotary	36	770 x 545 x 288	1,150	9.52/6.35	15

Indoor Unit Specifications – Model Number P18AWN-N214 / W18AWN-N214

Cooling Capacity (Min/Rated/Max) W	Heating Capacity (Min/Rated/Max) W	Power Input (Cooling/Heating) W	EER	COP	Star Rating – Cooling	Star Rating – Heating	Sound Pressure (Cooling) Sleep/Low/Medium/High (dBA)	Sound Pressure (Heating) Low/Medium/High (dBA)
900/5,000/6,000	900/6,000/9,000	1,240/1,400	4.03	4.29	3.5	4.0	29 / 38 / 40 / 45	35/40/42
Sound Power (Cooling) High (dBA)	Air Flow Rate (Cooling) Sleep/Low/ Medium/High/ Max(power) (m³/min)	Air Flow Rate (Heating) Low/ Medium/High (m³/min)	Dehumidification Rate (l/h)	Running Current (Cooling) Rated/Max (A)	Running Current (Heating) Rated/Max (A)	Starting Current (Cooling) Rated/ (A)	Starting Current (Heating) Rated/ (A)	Dimensions
60	125/183/225/267/365	192/233/275	2.0	6.6/10	7.3 / 10.7	6.6	7.3	1090 x 330 x 248
Net Weight (kg)
14.5

Outdoor Unit Specifications – Model Number P18AWN-U214

Operation Range (Cooling, Min – Max) / (Heating, Min – Max)	Sound Pressure (Cooling/Heating) (High) dBA	Sound Power (Cooling) (High) dBA	Airflow Rate (High) L/S	Compressor Type	Net Weight	Dimension	Refrigerant Base Charge (R410A)	Pipe Sizing (Gas/Liquid) mm	Maximum Circuit Breaker (A)
-10~48/-15~24	54/54	65	833	Twin Rotary	46	870 x 655 x 320	1,350	12.7/6.35	25

Indoor Unit Specifications – Model Number P24AWN-N214 / W24AWN-N214

Cooling Capacity (Min/Rated/Max) W	Heating Capacity (Min/Rated/Max) W	Power Input (Cooling/Heating) W	EER	COP	Star Rating – Cooling	Star Rating – Heating	Sound Pressure (Cooling) Sleep/Low/Medium/High (dBA)	Sound Pressure (Heating) Low/Medium/High (dBA)
900/7,000/8,650	900/8,000/11,400	1,950/2,060	3.59	3.88	2.5	3.0	29/38/42/47	39/44/49
Sound Power (Cooling) High (dBA)	Air Flow Rate (Cooling) Sleep/Low/ Medium/High/ Max(power) (m³/min)	Air Flow Rate (Heating) Low/ Medium/High (m³/min)	Dehumidification Rate (l/h)	Running Current (Cooling) Rated/Max (A)	Running Current (Heating) Rated/Max (A)	Starting Current (Cooling) Rated/ (A)	Starting Current (Heating) Rated/ (A)	Dimensions
65	125/183/233/283/380	192/242/283	2.7	9.4/11.6	9.6 / 12.7	9.4	9.6	1090 x 330 x 248
Net Weight (kg)
15

Outdoor Unit Specifications – Model Number P24AWN-U214

Operation Range (Cooling, Min – Max) / (Heating, Min – Max)	Sound Pressure (Cooling/Heating) (High) dBA	Sound Power (Cooling) (High) dBA	Airflow Rate (High) L/S	Compressor Type	Net Weight	Dimension	Refrigerant Base Charge (R410A)	Pipe Sizing (Gas/Liquid) mm	Maximum Circuit Breaker (A)
-10~48/-15~24	55/55	66	1,000	Twin Rotary	55	870 x 800 x 320	1,900	15.88/9.52	25

Indoor Unit Specifications – Model Number P28AWN-N214 / W28AWN-N214

Cooling Capacity (Min/Rated/Max) W	Heating Capacity (Min/Rated/Max) W	Power Input (Cooling/Heating) W	EER	COP	Star Rating – Cooling	Star Rating – Heating	Sound Pressure (Cooling) Sleep/Low/Medium/High (dBA)	Sound Pressure (Heating) Low/Medium/High (dBA)
900/8,000/9,000	900/9,000/12,000	2,450/2,500	3.27	3.60	2.0	2.5	29/38/42/47	39/44/49
Sound Power (Cooling) High (dBA)	Air Flow Rate (Cooling) Sleep/Low/ Medium/High/ Max(power) (m³/min)	Air Flow Rate (Heating) Low/ Medium/High (m³/min)	Dehumidification Rate (l/h)	Running Current (Cooling) Rated/Max (A)	Running Current (Heating) Rated/Max (A)	Starting Current (Cooling) Rated/ (A)	Starting Current (Heating) Rated/ (A)	Dimensions
65	125/183/233/283/385	192/242/283	2.8	10.9/11.6	11.1 / 12.7	10.9	11.1	1090 x 330 x 248
Net Weight (kg)
15
